Coffee Grinder Frame Medium

Coffee Grinder Frame Medium

View frame geometry
$1,150.00

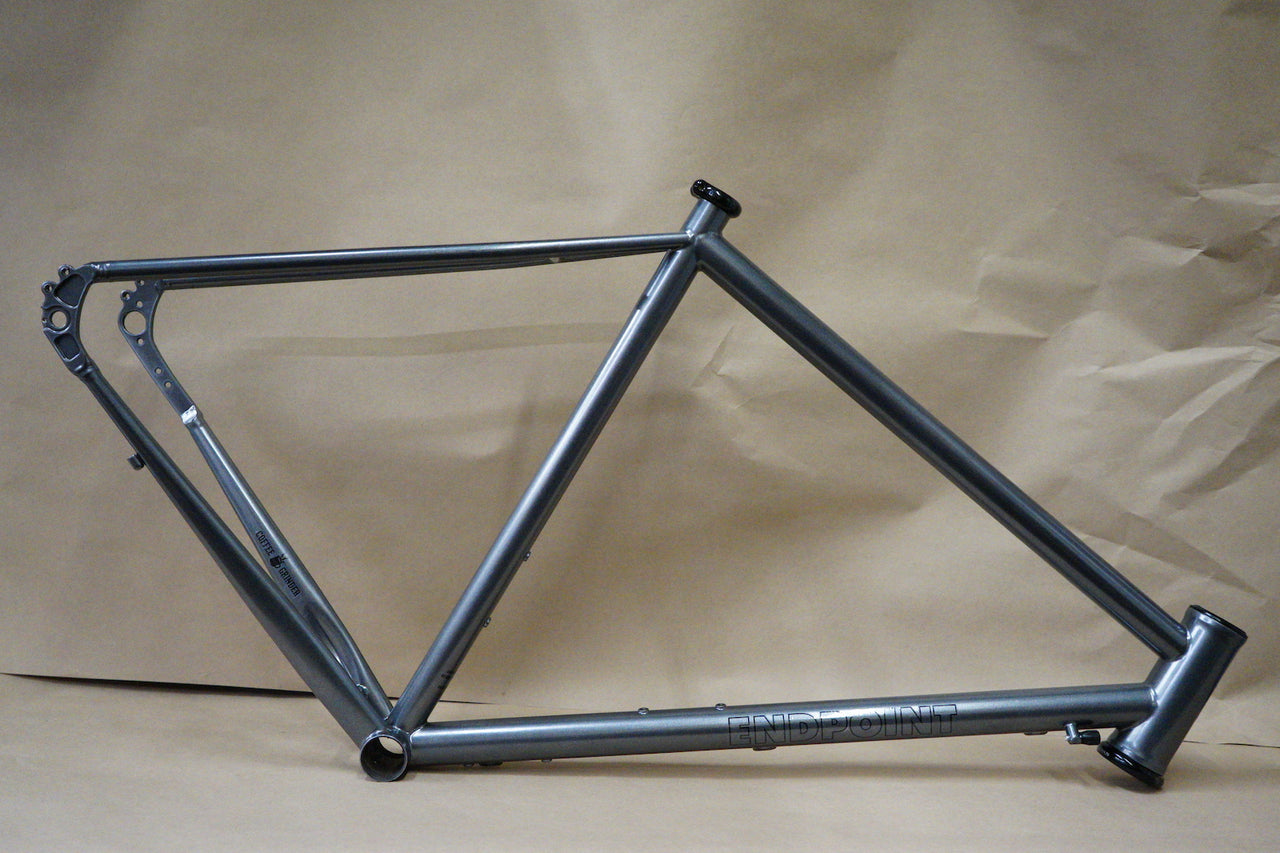

Powder coated Speedway Grey, dimple clearance doesn't allow full 650b x 48 clearance.

Scratch & dent items are bikes and parts that didn't quite make the production cut, but will ride just fine! Consider these our garage sale items.


The details

Columbus Zona Tubing

A main triangle constructed from legendary Columbus Zona tubing.

Precision machined dropouts

We utilize the Paragon Machine Works 12mm thru-axle, flat mount disc dropout assembly.

Standard BSA 68mm

Simple and timeless, the Coffee Grinder uses a BSA 68mm English threaded bottom bracket shell.



Frame specs

Frame: Front Triangle - Columbus ZONA, Life tubing / Rear Triangle - 4130 Nova stays, Paragon Machine Works 44mm machined head tube and 12mm thru-axle, flat-mount disc dropouts
Fork: Full carbon Whisky #9 12mm flat-mount thru-axle fork with fender mounts or Rodeo Labs Spork 1.2 or 3.0 upgrade (+150) with fender and rack mounts. Contact us via email for additional options.
Headset: Cane Creek 40 (1.125-1.5 Tapered or 1.125 Straight Convertible), or Chris King Inset7 upgrade
Seatpost: 27.2mm
Seatpost Clamp (Included with frameset): 30.0mm
Bottom Bracket: 68mm English Threaded BSA
Max Tire Clearance: 700x38 or 650bx50
Front Derailleur Clamp: 28.6mm
Frame Weight: 4 lb 4 oz - Size Small
Rear Axle: 12x142mm (12x1.5 thread pitch)

Tube specifications:
28.6 x .8/.5/.8 Columbus Zona top tube
31.8 x .8/.5/.8 Columbus Zona down tube
28.6 Columbus Life seat tube
Columbus Zona rear triangle

Bottom Bracket: 68mm English Threaded
Headset: 1 1/8 Threadless
Front Axle: 12x100
Rear Axle: 12x142
Max Tire Clearance: 700x38 / 27.5 x 1.8 without fenders
Max Rotor Size: 160F/160R
Seatpost: 27.2mm
Seatpost Clamp: 30.0mm

Geometry
All measurements in millimeters

Size

SM

MD

MD/LG

LG

XL

Reach

370

384

391

397

400

Stack

546

571

592

610

630

Top Tube Horizontal

527

550

563

580

590

Head Tube

105

130

150

170

190

Seat Tube Center to Center

460

490

525

545

575

Fork Axle to Crown

396

396

396

396

396

Fork Rake

45

45

45

45

45

Chainstay Length

418

418

418

418

418

Head Angle

71.5

72.5

72.5

72.5

72.5

Seat Angle

74

74

74

74

74

Bottom Bracket Drop

70

70

70

70

70
